Our Projects

Here are some of our projects.

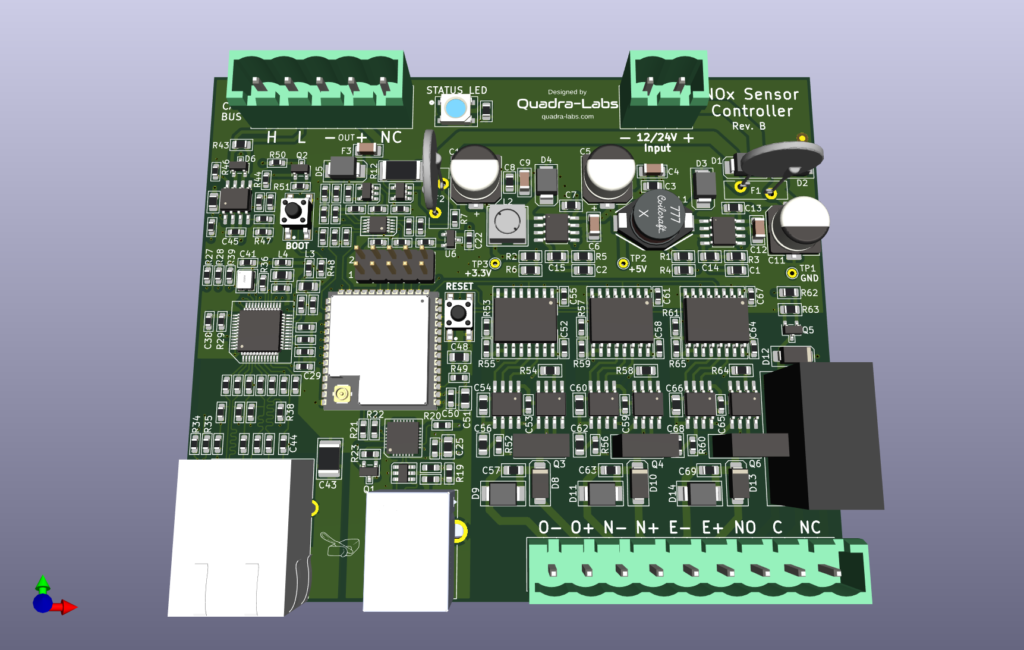

Smart NOx Sensor Probe Controller

This is a custom circuit designed according to customer specifications to read data from an intelligent gas probe operating over CAN Bus. The gas readings and parameters are displayed on 3 4-20mA outputs, as well as through the Modbus-TCP port so that the factory automats can access the data.

A USB type B port is also available for local communication with the device as well as firmware updates.

Type of development: Hardware + Firmware

General Characteristics:

  • 1 CAN port
  • 1 Ethernet Modbus-TCP port
  • 3 outputs 4-20mA
  • 1 relay output
  • 1 USB port
  • Power supply: 12 to 24Vdc
  • Microcontroller: ESP32S3

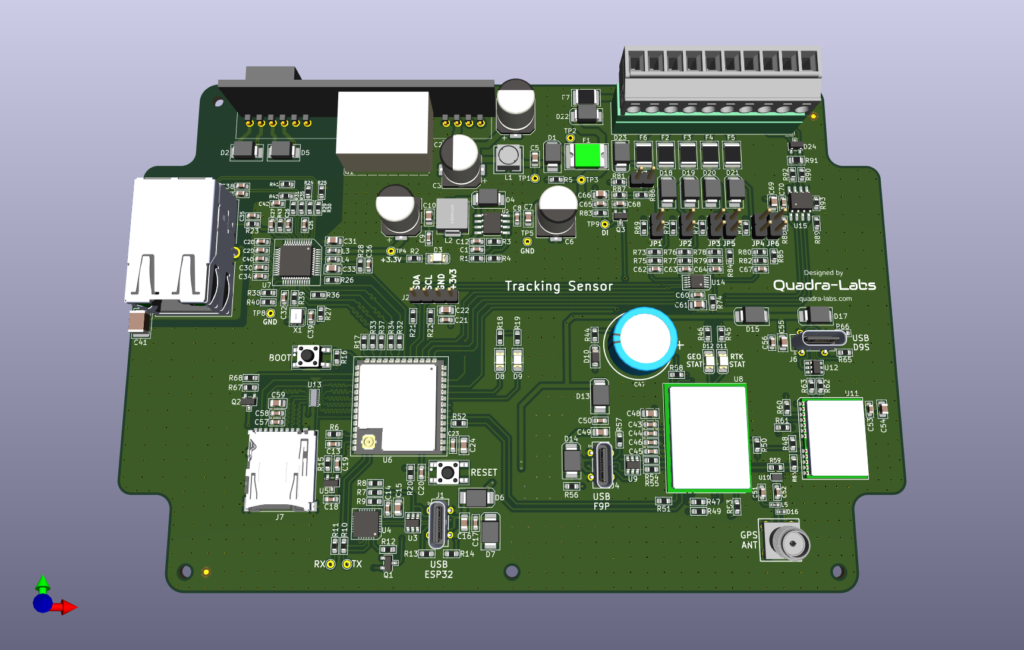

GPS tracking system for crane control

This is a custom circuit designed according to the customer's specifications whose objective is to perform a continuous recording of the position of a crane with an accuracy of a few centimeters. The device is powered through the Ethernet-POE port, it has a Micro-SD card for data logging as well as several I/O for reading external sensors such as anemometers, temperature sensors, etc.

Type of development: Hardware only

General Characteristics:

  • 1 Ethernet-POE port
  • 3 USB-C ports
  • 1 RS-485 port
  • 4 analog inputs 0-10V
  • 2 current-loop inputs 4-20mA
  • 1 digital input for reading fast pulses.
  • 1 RF input with power supply output for GPS active antenna
  • GPS Module + GPS Corrections Module
  • Microcontroller: ESP32S3
  • Power supply: POE

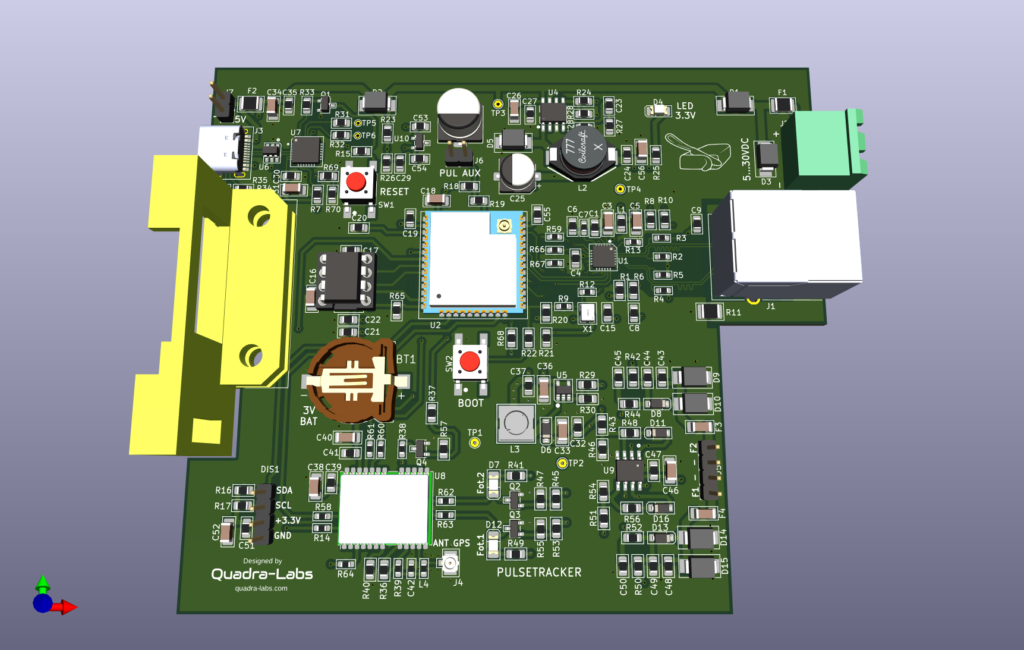

Timing system for racing cars

It is a custom-designed circuit according to customer specifications, whose objective is to provide the necessary hardware to a software infrastructure for timing rally cars. The equipment is in charge of reading the photocells as well as receiving accurate GPS data. The equipment has USB, Ethernet and Wifi ports.

Type of development: Hardware + Firmware

General Characteristics:

  • 1 Ethernet-POE port
  • 1 USB port
  • 2 inputs for photocells with RF filtering and protections
  • Puerto i2c para display
  • GPS Module
  • Wifi
  • Microcontroller: ESP32
  • Power supply: 5 to 30Vdc
